mauer 1545 LOOP/RVS magneetschoot without strike plate
Downloads verkoop
mauer 1545 LOOP/RVS magneetschoot without strike plate
01545F009309064
Article number
01545F009309064
Description
mauer 1545 LOOP/RVS magneetschoot without strike plate
EAN code
8715791131575
1
: 1

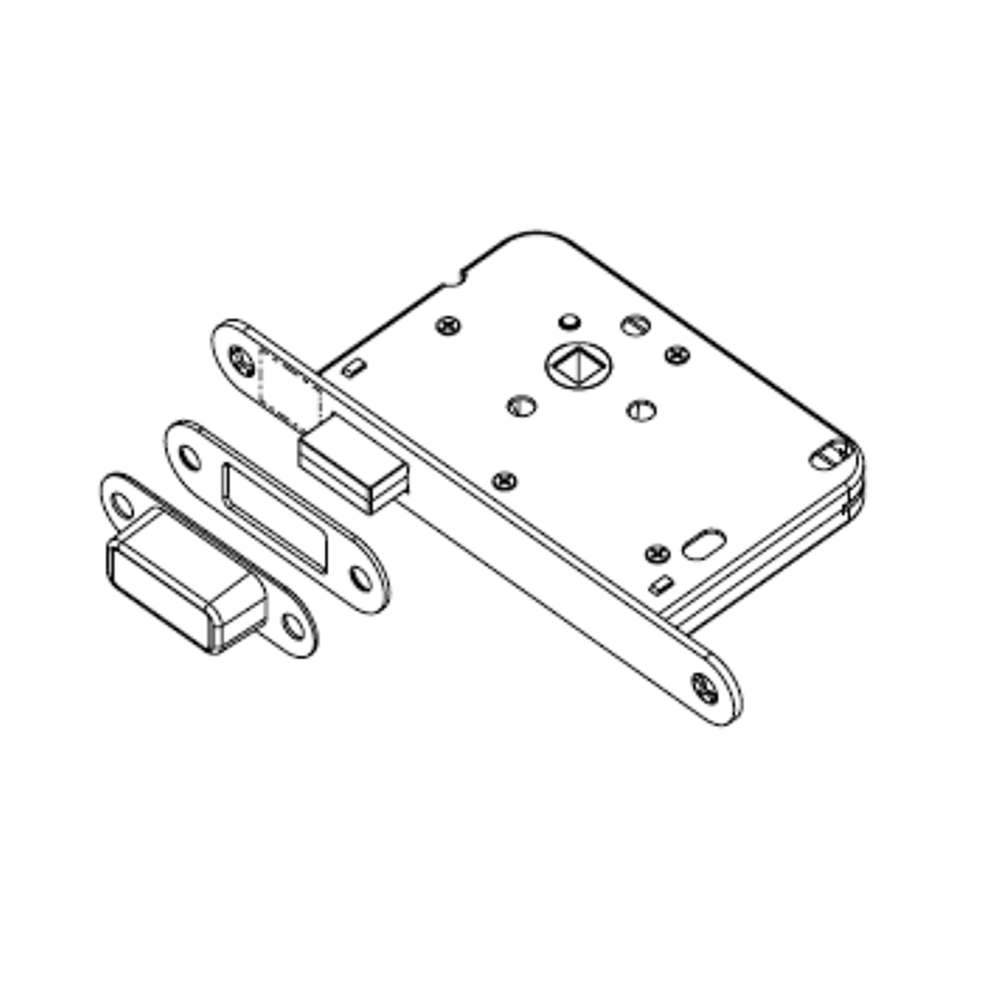

Magnetic latch door lock for interior doors, with a very smooth and silent operation. Front plate and strike in stainless steel. Includes dust box on the latch bolt.
- Latch bolt not visible when door is open
- Magnetically operated: latch bolt is activated by the magnet when the door is closed
- Made in the EU

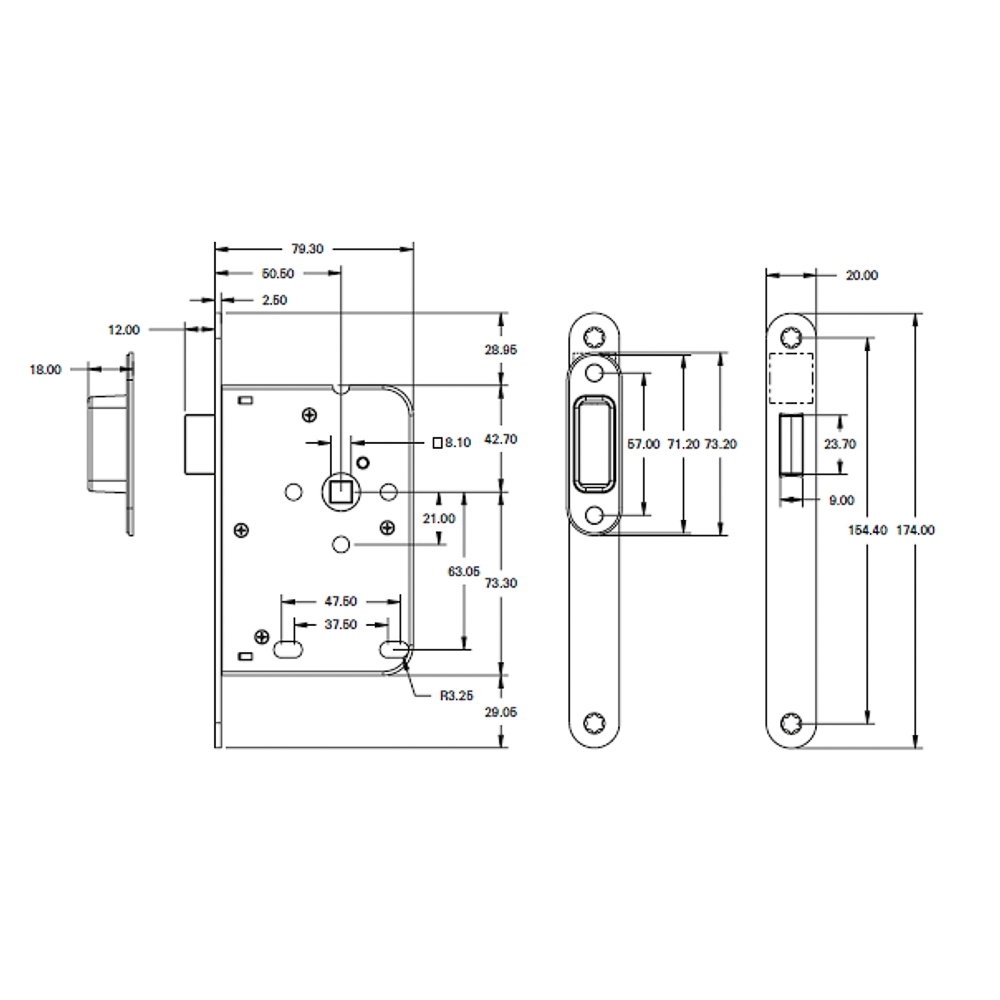

- Dimensions according to standard house locks (1500 series)
- Latches 8 mm
- Front plate 174 x 20 mm rounded stainless steel (304)
- Mandrel size 50 mm
- Exclusive strike plate/bowl
- Matching keeps: 08145F006 and 08145F006-S
- For optimum operation the space between the door and frame (closing seam) may be 3-5 mm, with a maximum of 7 mm
Downloads verkoop
Unit
Piece
Weight
0,000
